2710-36 DIMENSIONS
36 1/8"L × 4 1/8”W × 4 1/8"H
SPECIFY OAH: 24“ / 30” / 36” CANOPY: 32 1/2“L × 4 5/8”W × 1 1/4”H
42 WATT DIMMABLE LED: LTF QUANTUM LUX, 2700K, CRI 90+, 3100 LUMENS
2710-48 DIMENSIONS
48 1/8"L × 4 1/8”W × 4 1/8"H
SPECIFY OAH: 24“ / 30” / 36” CANOPY: 44 1/2“L × 4 5/8”W × 1 1/4”H
56 WATT DIMMABLE LED: LTF QUANTUM LUX, 2700K, CRI 90+, 4150 LUMENS
2710-60 DIMENSIONS
60 1/8"L × 4 1/8”W × 4 1/8"H
SPECIFY OAH: 24“ / 30” / 36” CANOPY: 56 1/2“L × 4 5/8”W × 1 1/4”H
70 WATT DIMMABLE LED: LTF QUANTUM LUX, 2700K, CRI 90+, 5185 LUMENS

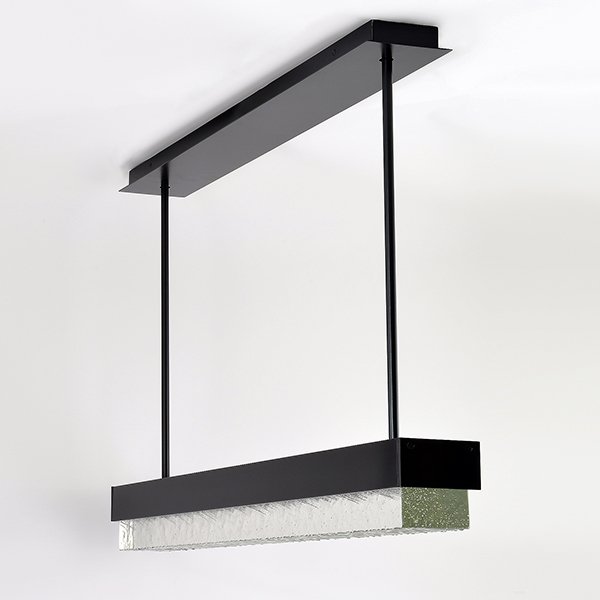

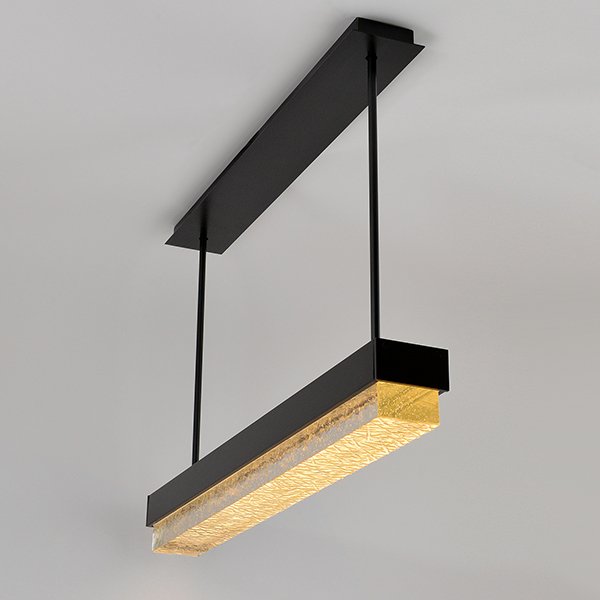

CLEAR CAST BAR WITH SIGNATURE DURKIN DESIGN SURFACE TEXTURE
SEE PRODUCT VARIATIONS
MAGNITUDE PHASE DIMMABLE LED DRIVER BUILT INTO FIXTURE
(DIM TO 1% WITH LEADING EDGE TRIAC DIMMER)
DOUGLAS DURKIN
